Hand Stone Cutter

• Place of Origin:

   Lebanon

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1464505

• Place of Origin:

  Lebanon

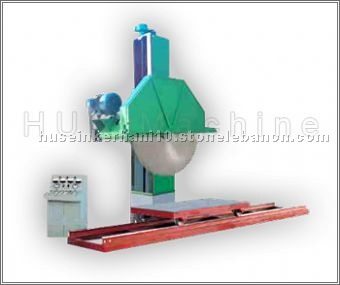

• The HK-0101/A Block Cutter is fully automatic.
  We put a block on the table, and we insert the parameter of width of tile to be cut (example: 2 cm), then the machine works automatically, it cuts the block with the specified width then the table moves to cut another tile from the block and so on until the block is finished.
  We can also work manually with this machine.
  It has 1 column; we can install a disk of 1300 mm of diameter.
  The cutting process is controlled with an Inverter. The machine should be fixed on a Cement Base. It has an automatic hydraulic table.

  Blade diameter:1200-1300 mm
  Maximum cutting size (WxH): 1500x500 mm
  Maximal longitudinal stroke of tile delivery trolley truck: 4000 mm
  Size of worktable (LxW): 2000x1500 mm
  Rails length: 4000 mm
  Main motor power: 37.5 kw
  Gearbox to move up and down: 0.75 kw
  One Gearbox to move the Head of the disk: 0.75 kw
  One Gearbox for the Motor of the Table: 2.25 kw
  General power: 41.25 kw
  Overall dimensions (LxWxH): 4000x1500x1800 mm
