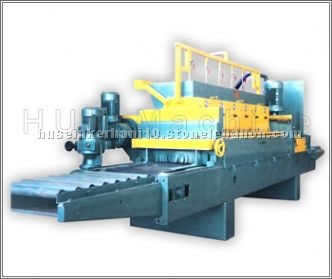

Polishing Machine for Tiles

• Place of Origin:

   Lebanon

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1440804

• Place of Origin:

  Lebanon
• This machine can polish the marble tiles. The upper surface of the tiles will obtain smooth and flat finish after polishing. It works with full automatic system. We can install up to 12 heads upon request. It polishes, ripens and grinds. The diamond heads correct the thickness of the boards in case the thickness is not correct. We can also work manually with this machine. The number of diamond and polishing heads changes upon request. The dimensions and general power of the machine change depending on the number of installed heads.
  Diamond heads count: 1-3
  Polishing heads count: 6-12
  Polishing width: 200-650 mm
  Thickness of tile: 15-80 mm
  Motor of each Diamond Head (RPM:1420 rotation): 22.5 kw
  Motor of each Polishing Head (RPM:1420 rotation): 6 kw
  One Gearbox to move the polishing heads: 1.5-3 kw
  One variable Gearbox for the belt: 3-5.25 kw
  General power: 63-147.75 kw
  Air pressure: 3-5 bar
  Overall length of the machine: 7200-13000 mm
  Overall widthxheight: 1250x2200 mm
