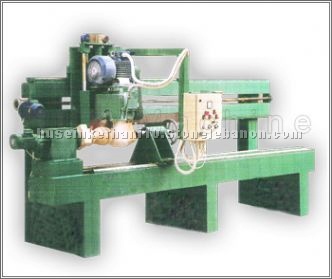

Stone Lathe 1

• Place of Origin:

   Lebanon

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1445509

• Place of Origin:

  Lebanon
• It works with automatic PLC system, or mechanically. We can use it to have special forms and shapes of stone and marble. Upon request, we can modify the machine to be able to work with different lengths and diameters.
  Length of material to be proceed (upon request): 1500-4000 mm
  Diameter of material to be proceed (upon request): 300-800 mm
  Main motor power: 11.25 kw
  Gearbox to move up and down: 0.5 kw
  One Gearbox to move the Head of the disk: 0.5 kw
  One Gearbox to turn the head: 0.5 kw
  Gearbox to move backward and forward: 0.5 kw
  General power: 13.25 kw
  Overall length (upon request): 2000-4500 mm
  Overall width: 1300 mm
  Overall height: 1800 mm
